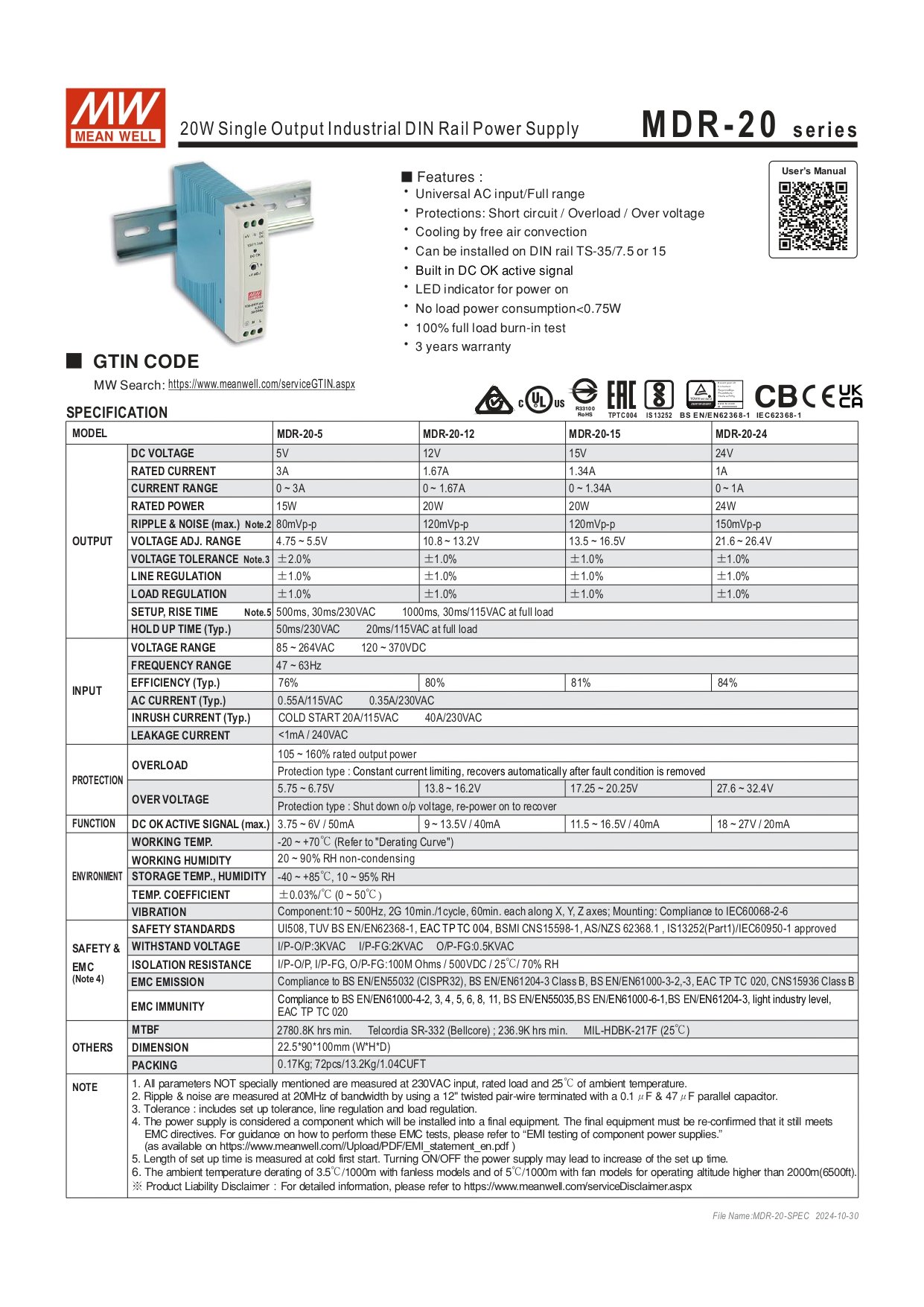

Meanwell Power Supply MDR-20-24

₹1,221.00

Brand:

Feature	Detail
Output	24 V DC @ 1 A (24 W)
Input Voltage	85–264 VAC or 120–370 VDC, 47–63 Hz
Efficiency	~84% typical
Cooling & Form‑Factor	Convection-cooled, plastic case; mounts on TS‑35/7.5 or 15 mm DIN rail; dimensions ~22.5 × 90 × 100 mm, weight ~0.17 kg
Certifications	UL508, TUV EN/IEC62368‑1, CE, RoHS
Protections	Overload, short-circuit, over-voltage, over-temperature; DC‑OK relay/LED; no-load consumption < 0.75 W
Operating Temp	–20 °C to 70 °C
