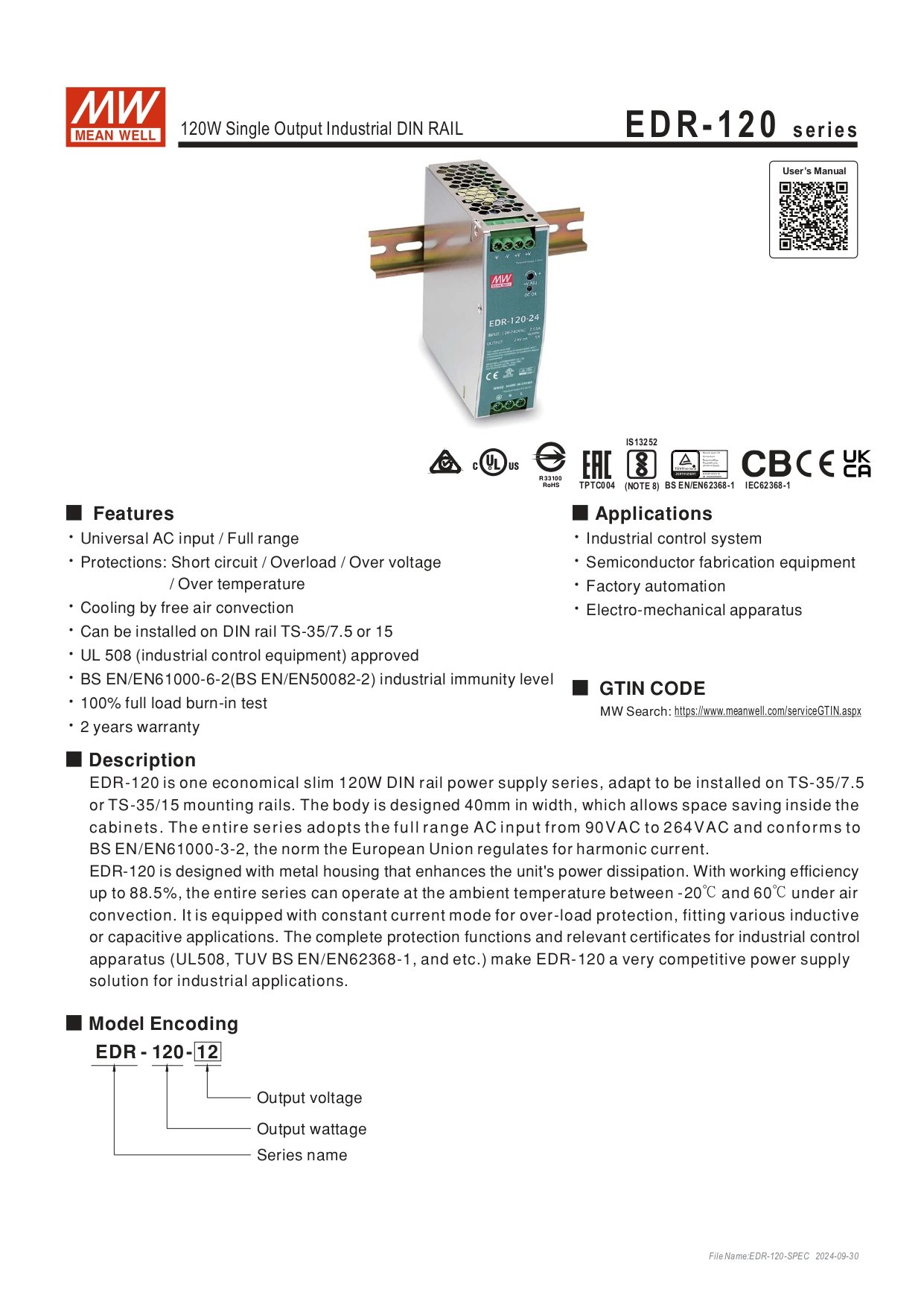

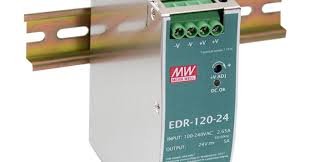

Meanwell Power Supply EDR-120-24

₹1,967.00

Brand:

Output: 24 VDC @ 5 A (120 W max)
Input range: 90–264 VAC or 127–370 VDC
Efficiency: Around 87.5 % typical
Dimensions: 145 × 65 × 146 mm (L×W×H) ≈ 4.5″×1.6″×5″
Operating temperature: –20 °C to +60 °C (with derating above ~50 °C)
Cooling: Fanless, convection-cooled metal enclosure
Protections: Short‑circuit, overload (constant current limiting), over‑voltage, over‑temperature; recovers automatically on reset
Certifications: UL 508, TUV, CE, CB, BIS, BSMI, EMC Class A
