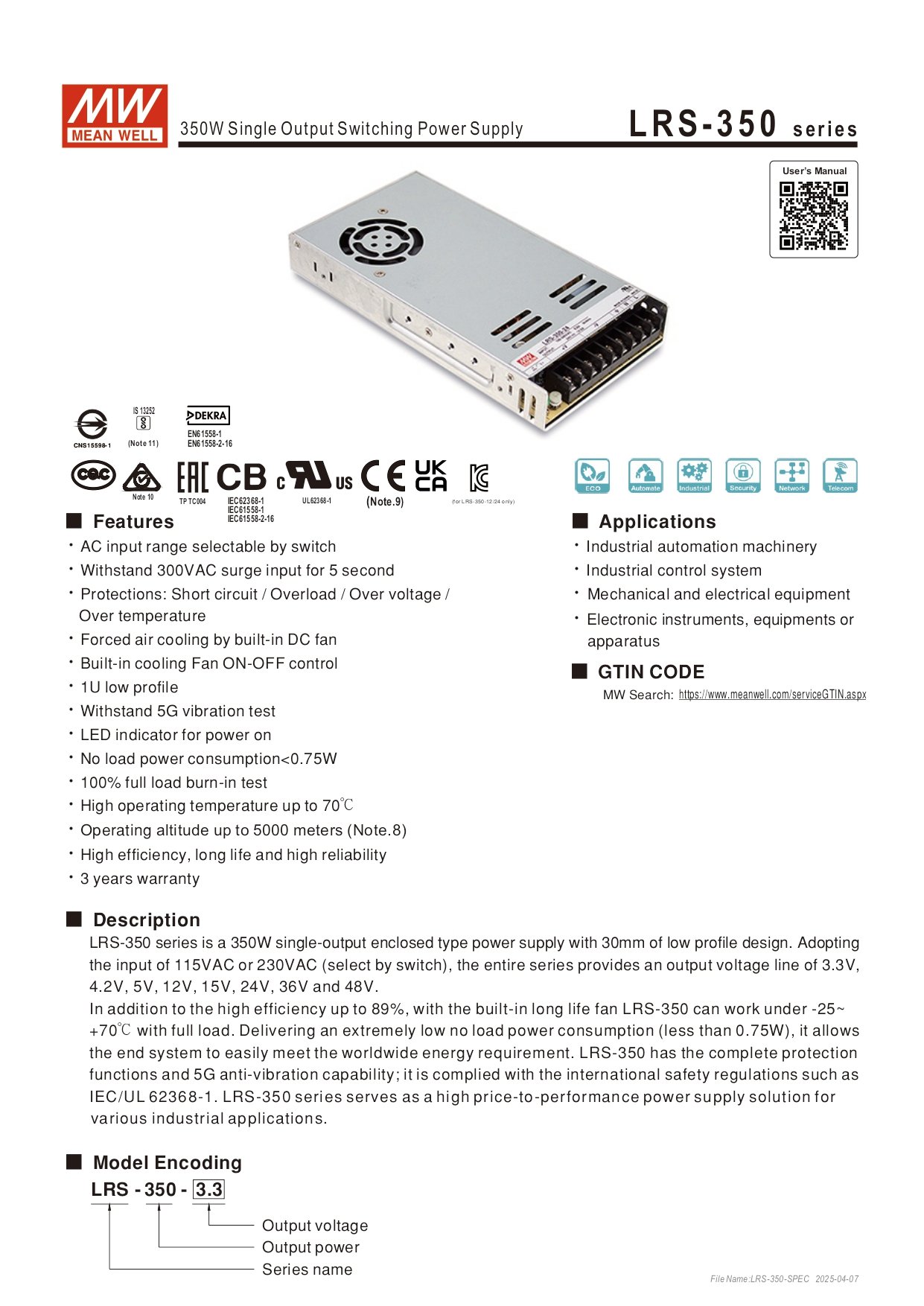

Meanwell Power Supply LRS-350-12

• Output: 12 V DC, up to 29 A (348 W)
• Input: Sele­ction switch, 90–132 VAC or 180–264 VAC; can also handle 240–370 VDC
• Efficiency: ~85–89% typical
• Cooling: Built-in DC fan with temperature‑controlled on/off
• Protections: Short‑circuit, overload (110–140% rated), over‑voltage, over‑temperature — all in hiccup or auto‑shutdown mode
• Operating Temperature: –25 °C to +70 °C (with full power) Other Highlights:
  • Ultra‑low no‑load power draw (< 0.75 W)
  • 1U low-profile design (215 × 115 × 30 mm), weighs ~0.76 kg

Safety: UL62368‑1, EN61558, IEC certifications; 3‑year warranty
