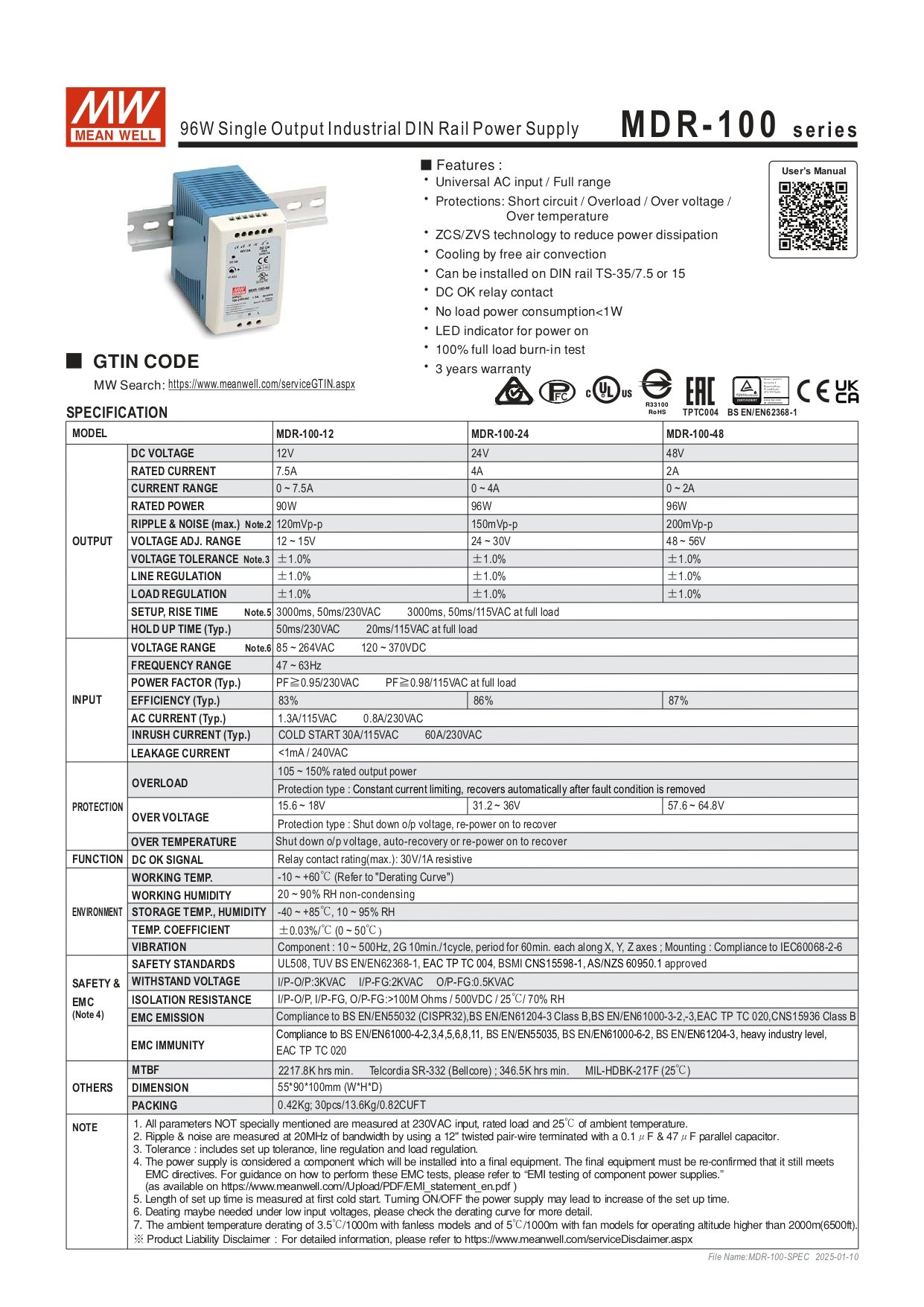

Meanwell Power Supply MDR-100-24

Output Voltage: 24 V DC

Maximum Output Current: 4 A → Rated ~96 W output power

Input Voltage Range:

• AC: 85 VAC to 264 VAC

• DC: 120 VDC to 370 VDC

Efficiency: Approximately 86–87%

Operating Temperature: –10 °C to +60 °C (with derating above certain thresholds)

Protections/Features: Includes short‑circuit, overload, over‑voltage, and over‑temperature protection; active PFC; low/no-load consumption (~<1 W); LED power‑on indicator; DC OK relay contact rated up to 30 V/1 A resistive

Certifications: cURus (UL508), TUV, CB, CE, RoHS compliant; industrial EMC immunity Class B and heavy-industry standards per EN61000 series

Mechanical Details: Ultra-slim plastic enclosed case; DIN-rail mounting (TS‑35/7.5 or TS‑35/15); dimensions ~100 × 55 × 90 mm; weight approx. 420 g
