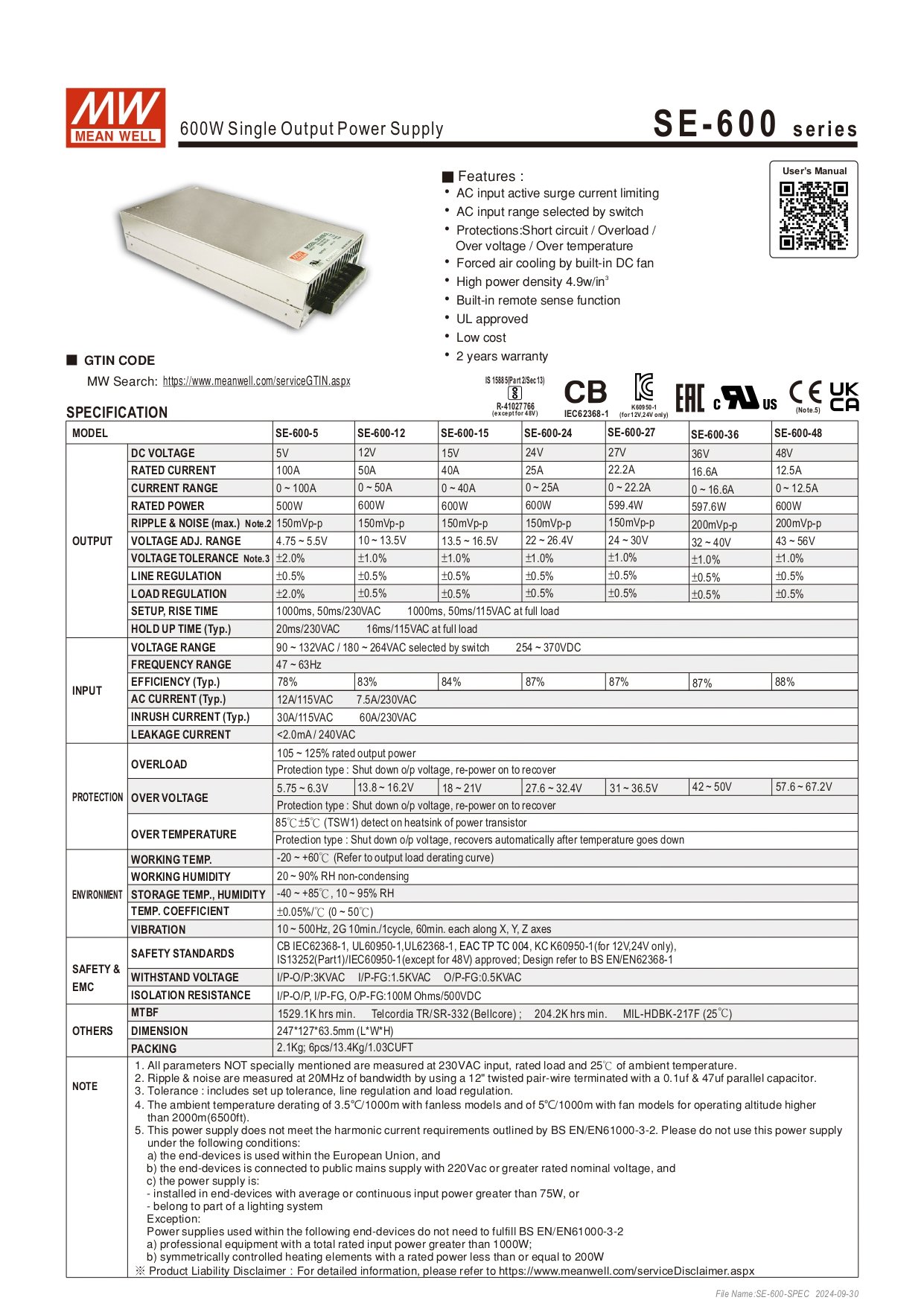

Meanwell Power Supply SE-600-24

Output: 24 V DC at 25 A (600 W total

Input Voltage Range:

• AC: 90–132 VAC or 180–264 VAC (selectable via switch)

• DC: 254–370 VDC

Efficiency: Up to ~87%

Operating Temperature: –20 °C to +60 °C (derating above ~50 °C per datasheet)

Cooling: Forced-air cooling via built-in fan

Protections: Short-circuit, overload, over-voltage, over-temperature; can survive 300 VAC surge input for 5 seconds

Other Features: Remote sense function, 150% peak load support for 100 ms, active surge current limiting, LED power-on indicator

Certifications & Safety: UL/CB approval, isolation withstand 3 kVAC between input and output, MTBF ≈360,000 hours at 25 °C (drops to ~143,000 h at 40 °C)

Mechanical: Enclosed metal chassis; dimensions ~247 × 127 × 63.5 mm; chassis-mount design (~2.5 in × 5 in × 9.7 in)
