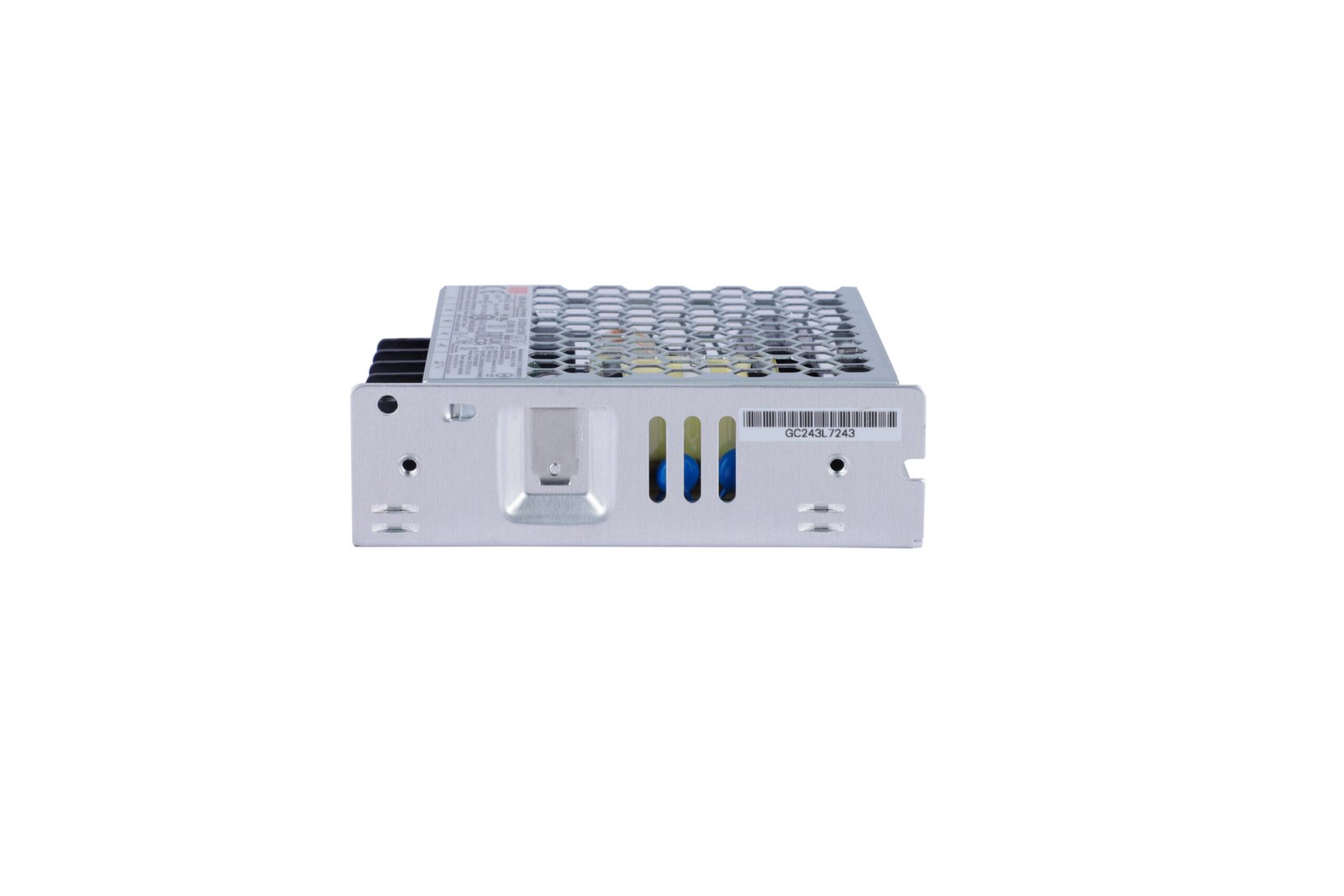

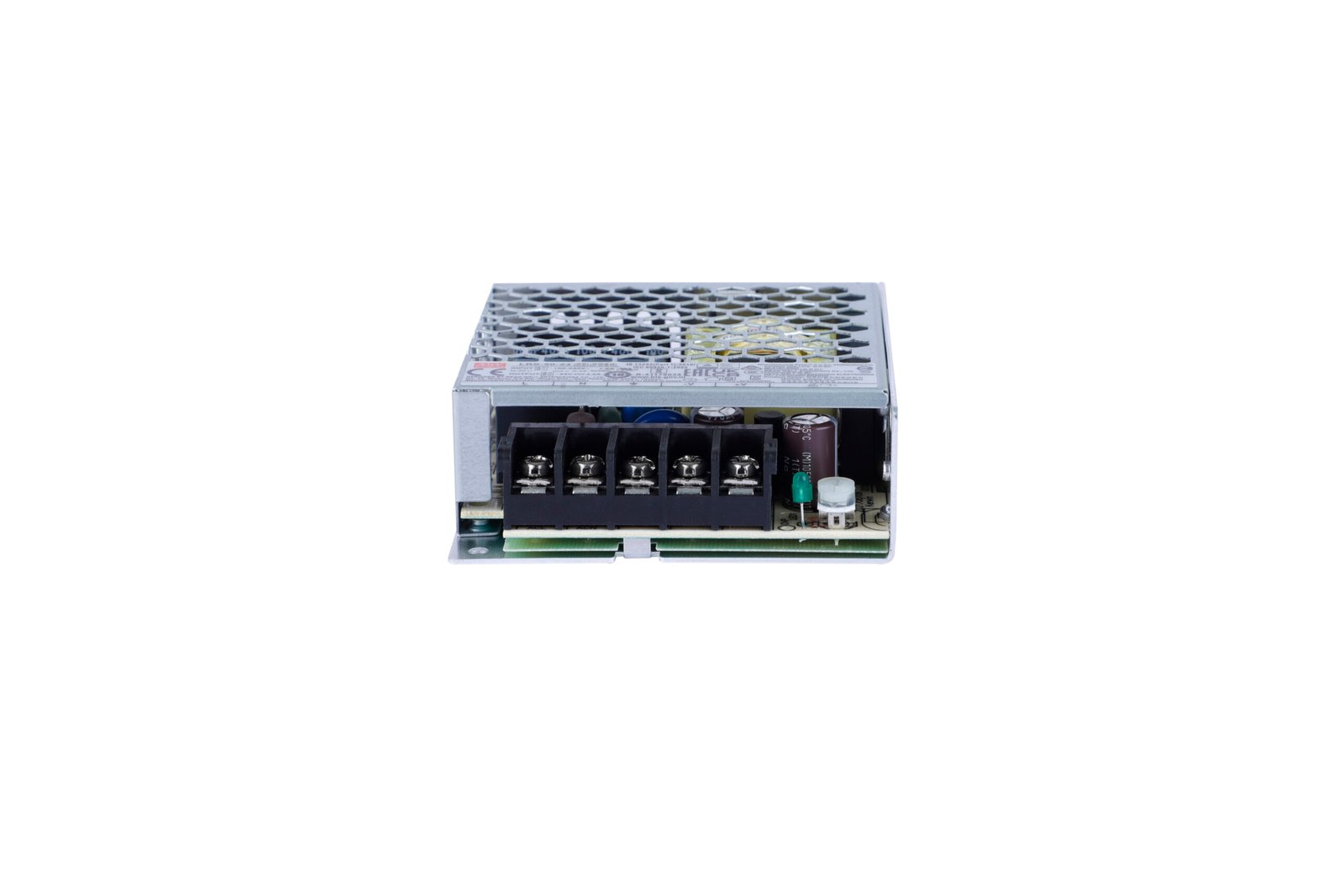

Meanwell Power Supply LRS-50-24
₹929.00
Brand:- Output: 24 V DC at up to 2.2 A (≈52.8 W)
- Input: 85–264 VAC (120–373 VDC), 47–63 Hz
- Efficiency: ~88–90 %, no-load consumption ≤0.2 W
- Protections:
- Overload: 110–150 %, hiccup auto-recover
- Overvoltage: 115–135 %, shuts down and resets on power cycle
- Short-circuit, over-temperature
- Operating Temp: –30 °C to +70 °C (with derating beyond ~50–57 °C)
- Mechanical: Low-profile metal chassis (99 × 82 × 30 mm), convection-cooled, panel-mount screw terminals, weight ~210 g
- Certifications: UL/IEC/EN 60950/62368‑1, EN 60335‑1, EN 61558, CCC, CE, etc.; EMI Class B
- Stability: Voltage ±0.5–1 % line/load regulation; ripple ≤150 mVpp
