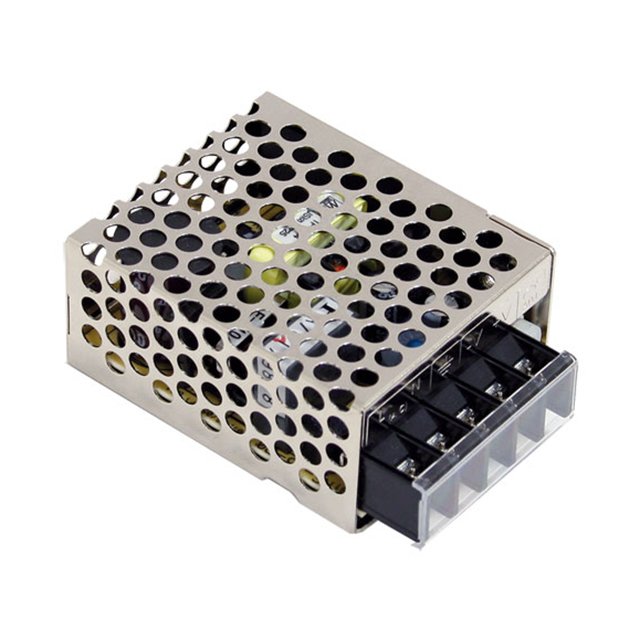

Meanwell Power Supply RS-15-24

₹734.00

Brand:

Output: 24 V DC at up to 0.625 A (≈15 W), adjustable via potentiometer (approx. ±10%)
Input: 85–264 VAC or 120–370 VDC, 47–63 Hz
Efficiency: ~82 % typical
Dimensions: ~62.5 × 51 × 28 mm; weight ~130 g
Operating Temperature: −20 °C to +70 °C (with derating above ~50 °C)
Protections:
Short‑circuit, overload (hiccup auto‑recover), over‑voltage, over‑temperature
Surge withstand: 300 VAC for 5 s; 5 G vibration tested
No‑load Power: <0.5 W
· Certifications: UL/IEC/EN 62368‑1, EN 55022 Class B EMC, EN61000 series, CCC, CE, TUV, CB, etc.
