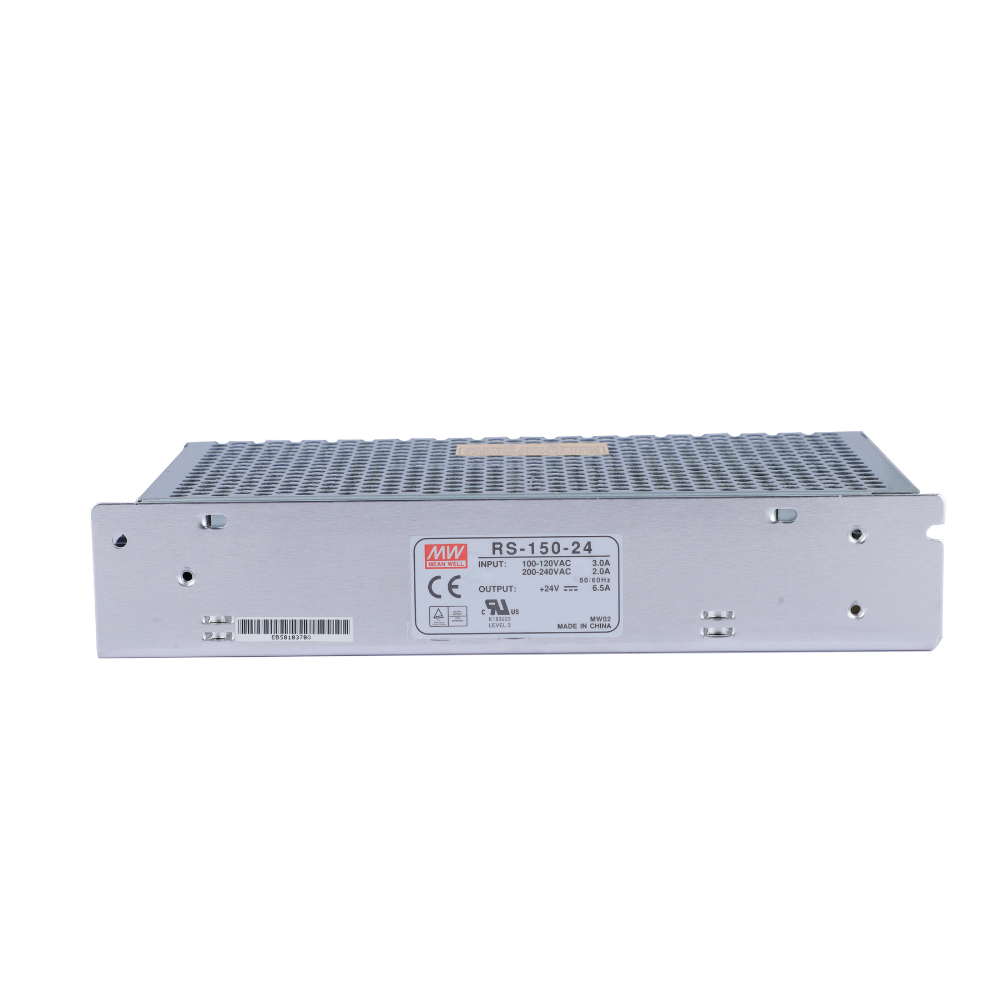

RS-150-24

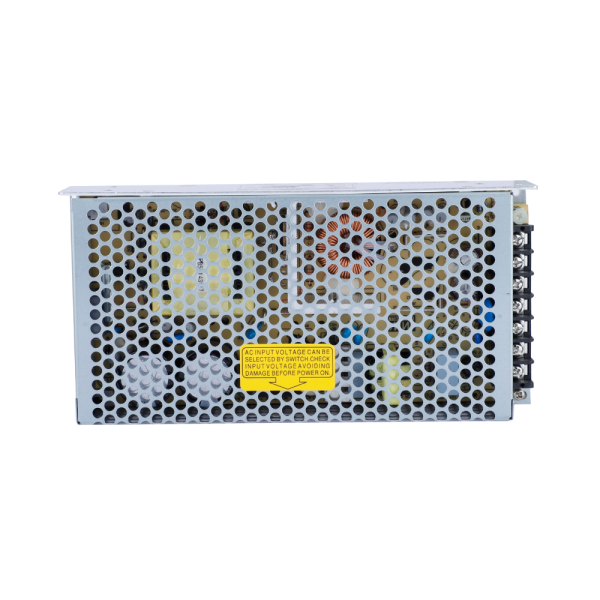

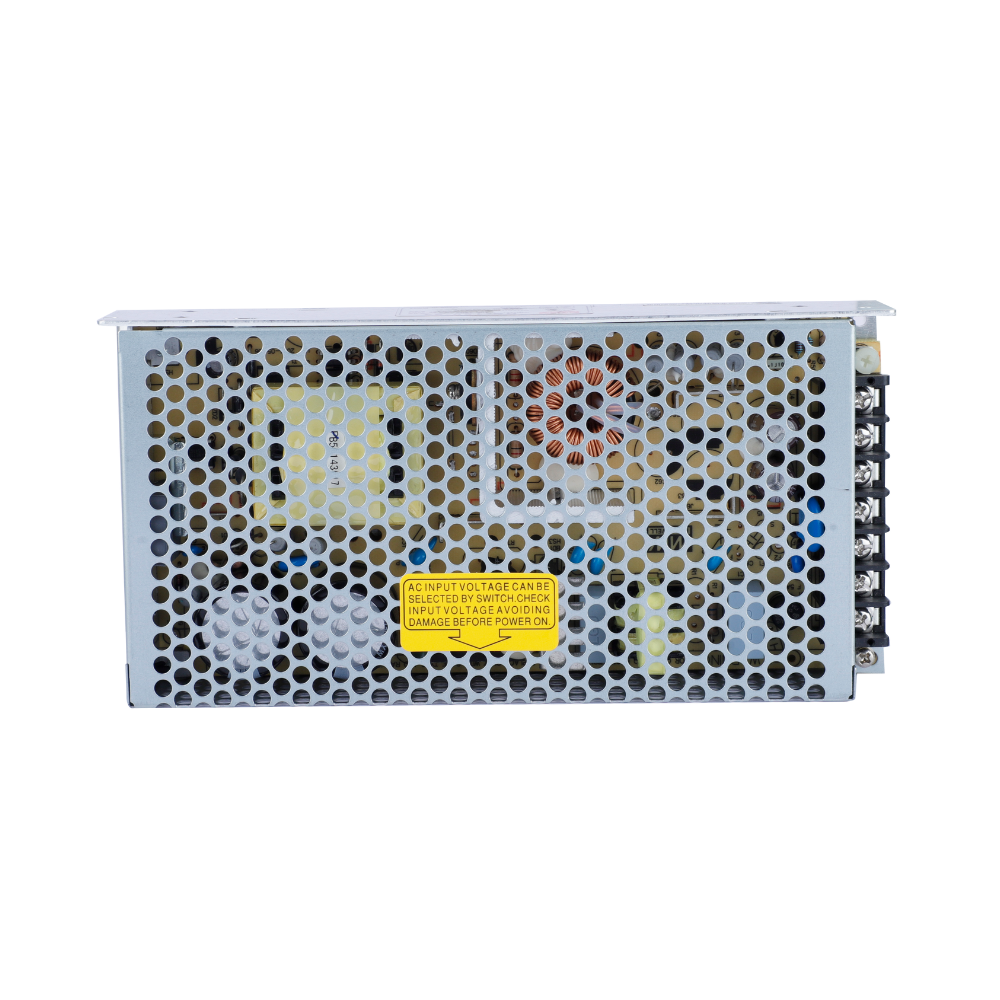

The Mean Well RS-150 series 156W single output AC to DC embedded switch mode power supply has an output current rating of 6.5A at 24VDC. It has a universal input supply voltage rating from 88VAC to 132VAC/176VAC to 264VAC (selected by the switch) and 248VDC to 373VDC (withstands 300VAC surge for 5 seconds without damage).

• Long life and high reliability
• High power density
• High operating temperature up to 70°C
• Long life electrolytic capacitors 105°C
• Easy installation

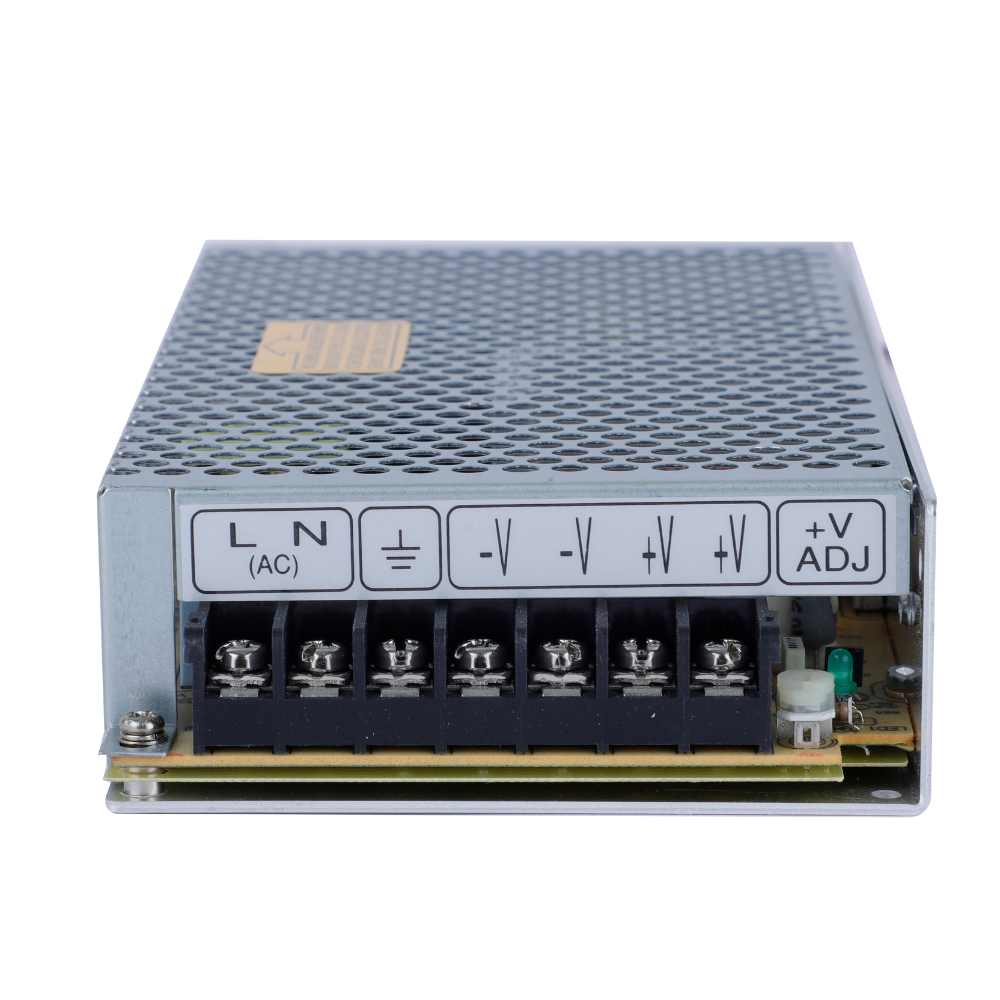

• Screw terminals
• Dual outputs have a minimum load requirement
• The total load must not exceed the rated output power
• Short circuit protection
• Cooling by free air convection
• Withstands a 5G vibration test
• Overload and overvoltage protection
