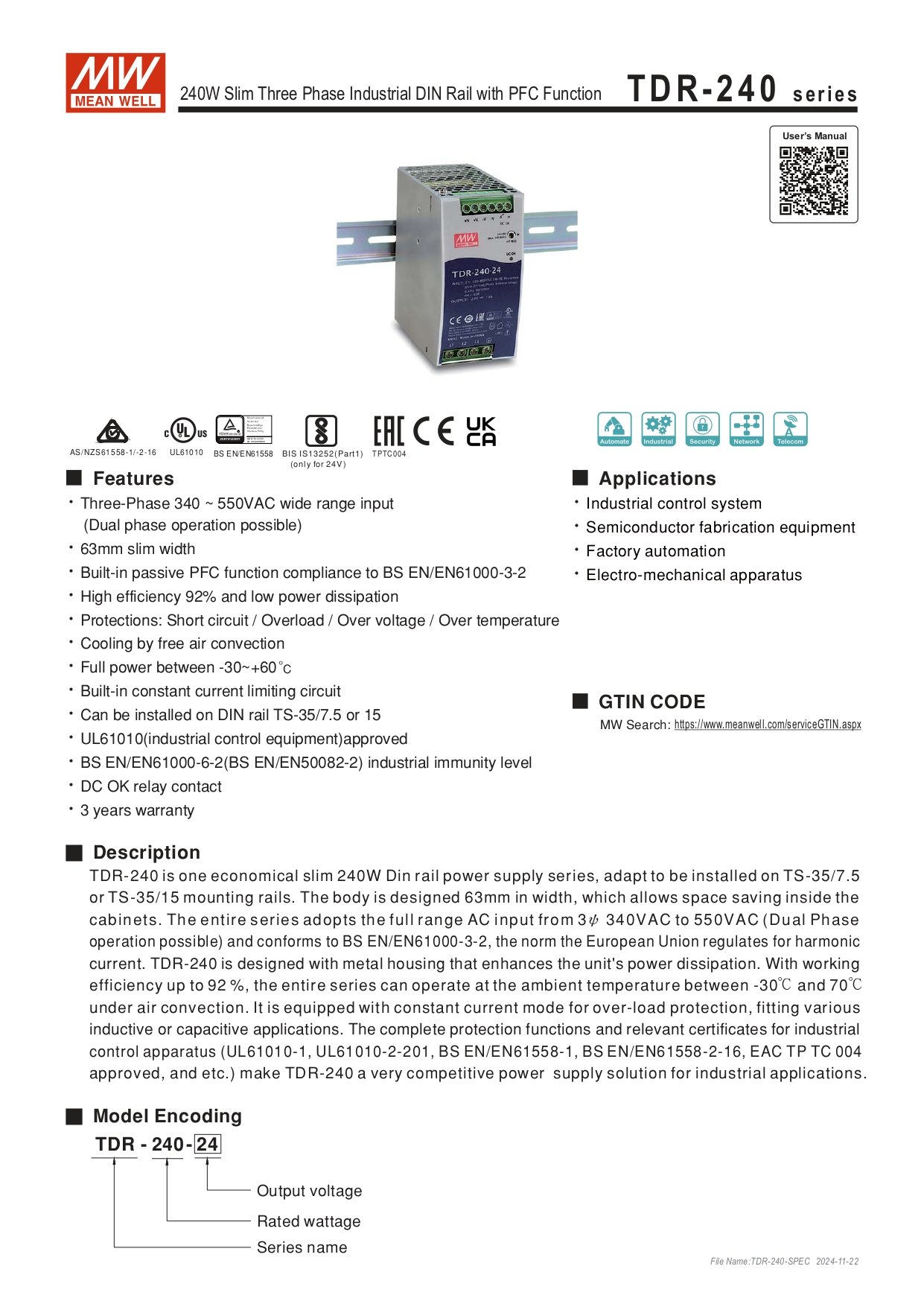

Meanwell Power Supply TDR-240-24

Output Voltage: 24V DC

Output Current: 10A

Rated Power: 240W

Input Voltage Range: 3-phase 340 ~ 550VAC or 480 ~ 780VDC

Efficiency: ~89%

Ripple & Noise: ≤ 150mVp-p

Voltage Adjustment Range: 24 ~ 28V

Overload Protection: 105 ~ 150% rated output power (constant current limiting, auto recovery)

Overvoltage Protection: 29 ~ 33V

Setup, Rise, Hold-up Time: 2000ms, 60ms, 16ms at full load & 400VAC

Isolation Voltage:

• Input to Output: 3kVAC

• Input to FG: 2kVAC

• Output to FG: 500VAC

Working Temperature: -30°C ~ +70°C

Cooling Method: Natural air convection

Functions:

• High efficiency, long life, and high reliability

• Overvoltage, overload, overtemperature protection

• Parallel operation possible

Safety Standards: UL62368-1, TUV BS EN/EN62368-1, EAC

Mounting: DIN Rail TS-35/7.5 or 15

Dimension (L×W×H): 121 × 85 × 118mm

Weight: ~1.2kg
