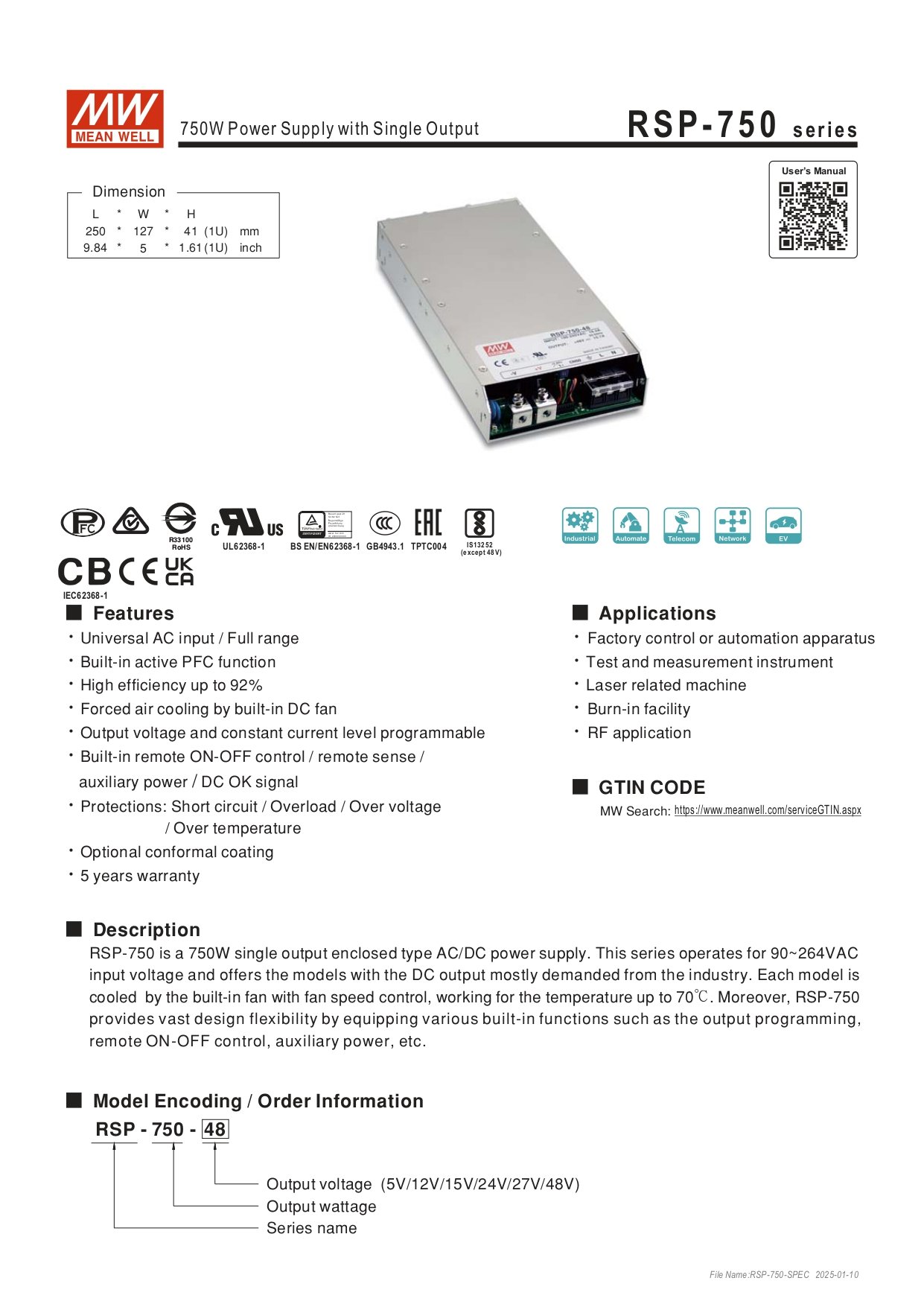

Meanwell Power Supply RSP-750-24

Output Voltage: 24V DC

Output Current: 31.3A

Rated Power: 751.2W

Input Voltage Range: 90 ~ 264VAC, 127 ~ 370VDC

Efficiency: ~90%

Ripple & Noise: ≤ 150mVp-p

Voltage Adjustment Range: 21.6 ~ 28.8V

Overload Protection: 105 ~ 135% rated output power (constant current limiting, auto recovery)

Overvoltage Protection: 29 ~ 34.8V

Setup, Rise, Hold-up Time: 1500ms, 50ms, 16ms at full load & 230VAC

Isolation Voltage:

• Input to Output: 3kVAC

• Input to FG: 2kVAC

• Output to FG: 0.5kVAC

Working Temperature: -30°C ~ +70°C (derating required above 50°C)

Cooling Method: Built-in DC Fan, speed control by load & temperature

Functions:

• Remote ON/OFF control

• Remote sense

• Power good & auxiliary power (5V/0.3A)

• Active power factor correction (PFC)

Protection: Short circuit / Overload / Overvoltage / Overtemperature

Safety Standards: UL62368-1, TUV BS EN/EN62368-1, EAC

Dimension (L×W×H): 295 × 127 × 41mm

Weight: ~1.8kg
