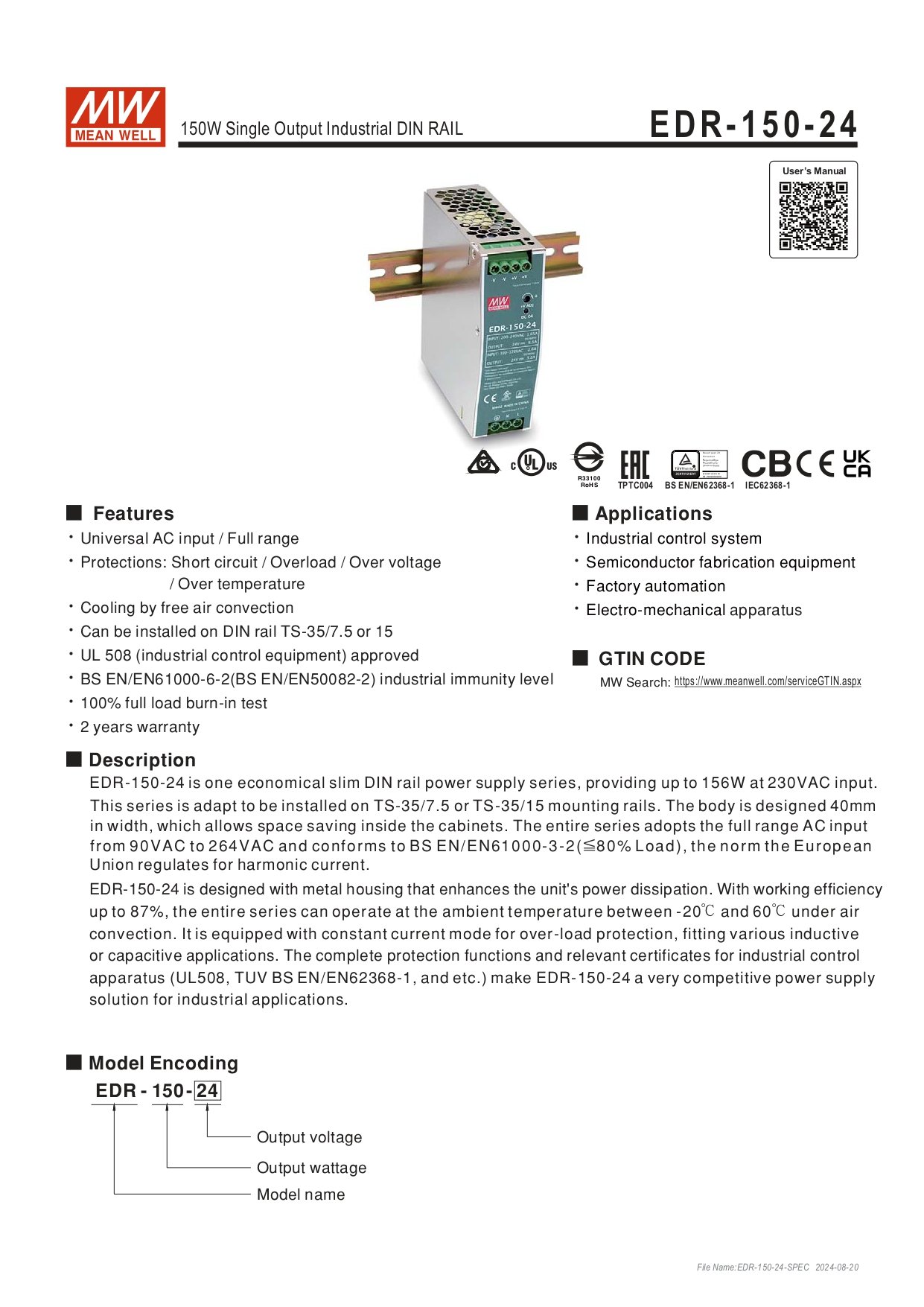

Meanwell Power Supply EDR-150-24

₹2,454.00

Brand:

Type: Slim DIN-rail mounted industrial AC-DC power supply
Power Rating: 150 W (156 W peak)
Input Voltage: 90–264 VAC or 127–370 VDC (universal input)
Output Voltage: 24 V DC (adjustable 24–28 V)
Output Current: Up to 6.5 A
Efficiency: ~87%
Protections: Short-circuit, overload (constant current limiting), over-voltage, over-temperature
Cooling: Convection (fanless)
Operating Temp: −20 °C to +60 °C (derating beyond)
Isolation Voltage: 3 kVAC (input to output)
Dimensions: 113.5 × 40 × 125.2 mm (slim design)
Mounting: DIN-rail TS-35 (7.5 mm or 15 mm)
Certifications: UL508, TUV/EN62368-1, CE, EAC
