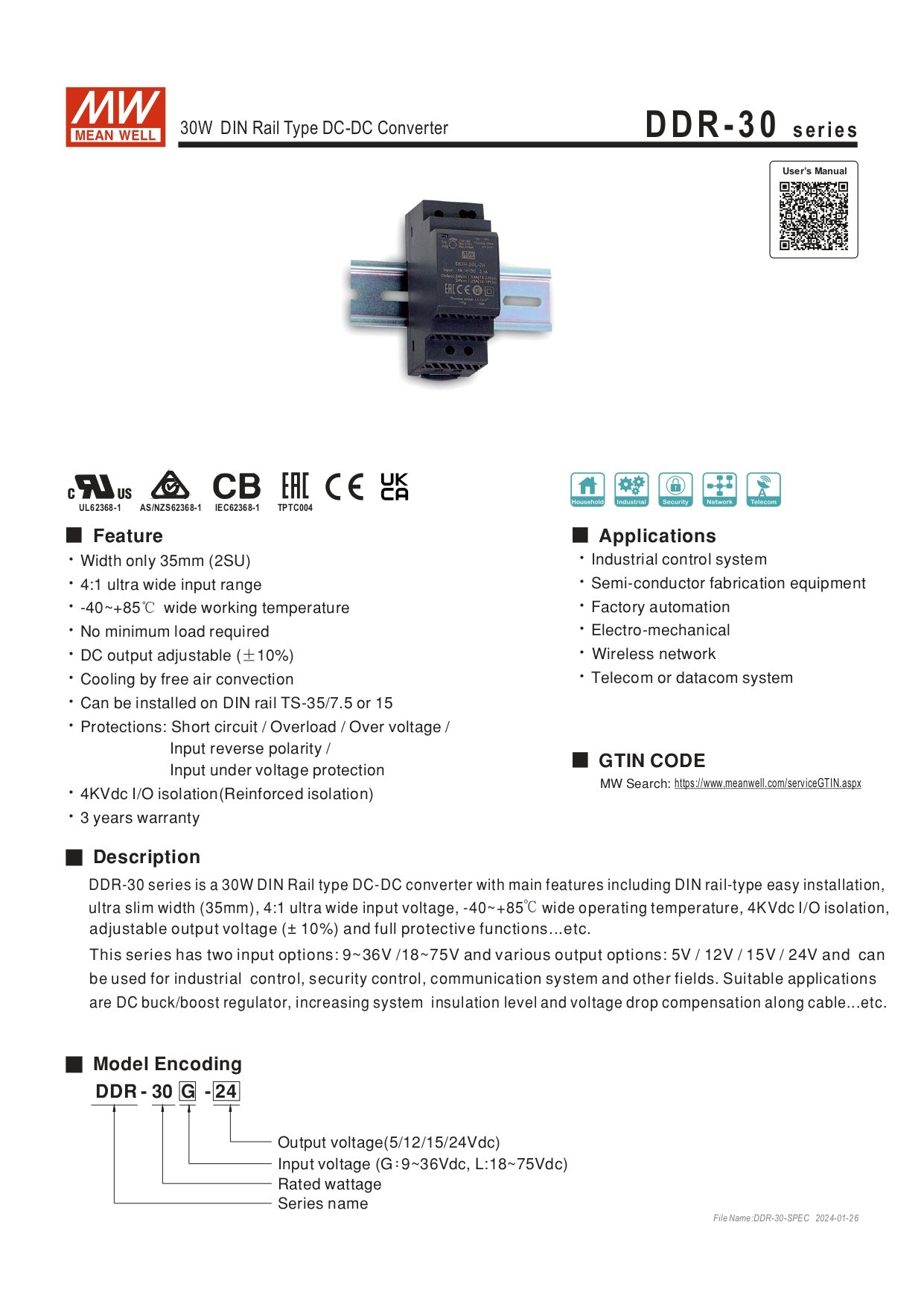

Meanwell Power Supply DDR-30L-24

Type: 30 W isolated DC-DC converter for DIN-rail mounting

Input Voltage Range: 18 – 75 V DC (wide 4:1 range)

Output Voltage: 24 V DC (adjustable ±10%)

Output Current: 1.25 A max

Efficiency: Up to 91%

Isolation Voltage: 4 kV between input and output

Protections: OCP, OVP, SCP, UVP, OTP, reverse polarity

Cooling: Fanless convection

Operating Temp: −40 °C to +85 °C (derating above +60 °C)

Mounting: DIN-rail TS-35 / 7.5 or 15

Size: 35 × 90 × 54.5 mm (ultra-slim)

Certifications: IEC/EN 62368-1, UL 62368-1, EN55032 Class B

Applications: Industrial automation, factory control, telecom, railway
