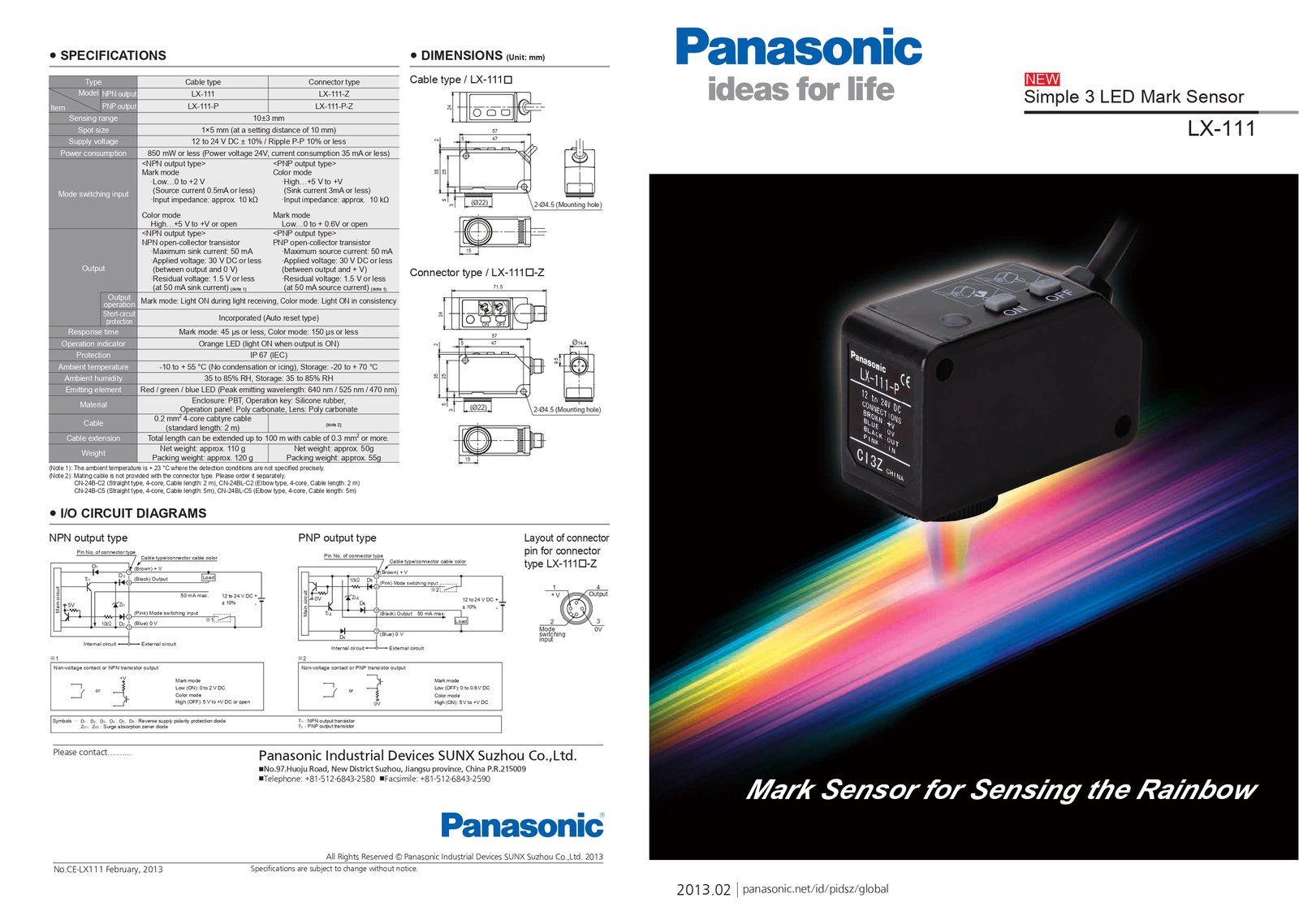

LX-111-P

Sensing range: 10 ± 3 mm

Spot size: 1 × 5 mm (at 10 mm distance)

Light source: RGB LED (auto-selection)

Detection modes:

• Mark Mode – ultra high-speed response (45 µs)

• Color Mode – high-precision discrimination (150 µs)

Supply voltage: 12–24 V DC (±10%)

Power consumption: ≈ 850 mW (30 mA at 24 V), Eco mode ~600 mW

Output type: NPN / PNP open-collector, max. 50 mA, 30 V DC

Protection: IP67, built-in short-circuit protection

Operating temp.: –10 to +55 °C

Storage temp.: –20 to +70 °C

Humidity: 35–85% RH

Dimensions: 57 × 47 × 35 mm (cable type)

Cable: 2 m standard (extendable to 100 m with ≥0.3 mm² cable)
