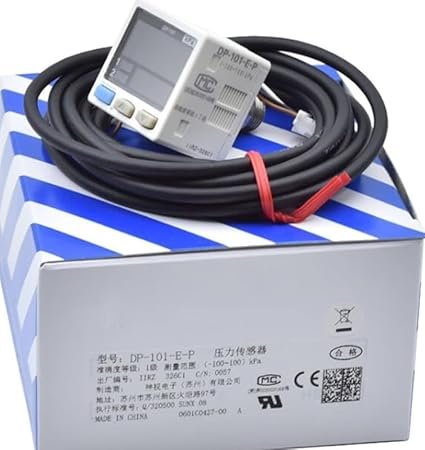

DP-101-E-P

Type: Digital pressure sensor (for air)

Pressure Range: –100 kPa to +100 kPa

Display: 3-digit, red LED

Output: PNP open-collector transistor, 125 mA max

Power Supply: 12–24 V DC ±10%

Response Time: 2.5 ms or less

Accuracy: ±2% F.S. or less

Repeatability: ±0.2% F.S. or less

Connection: 2 m cable (standard)

Operating Temp: 0°C to +50°C

Protection: IP40

Use: Vacuum & low-pressure monitoring in pneumatic systems
