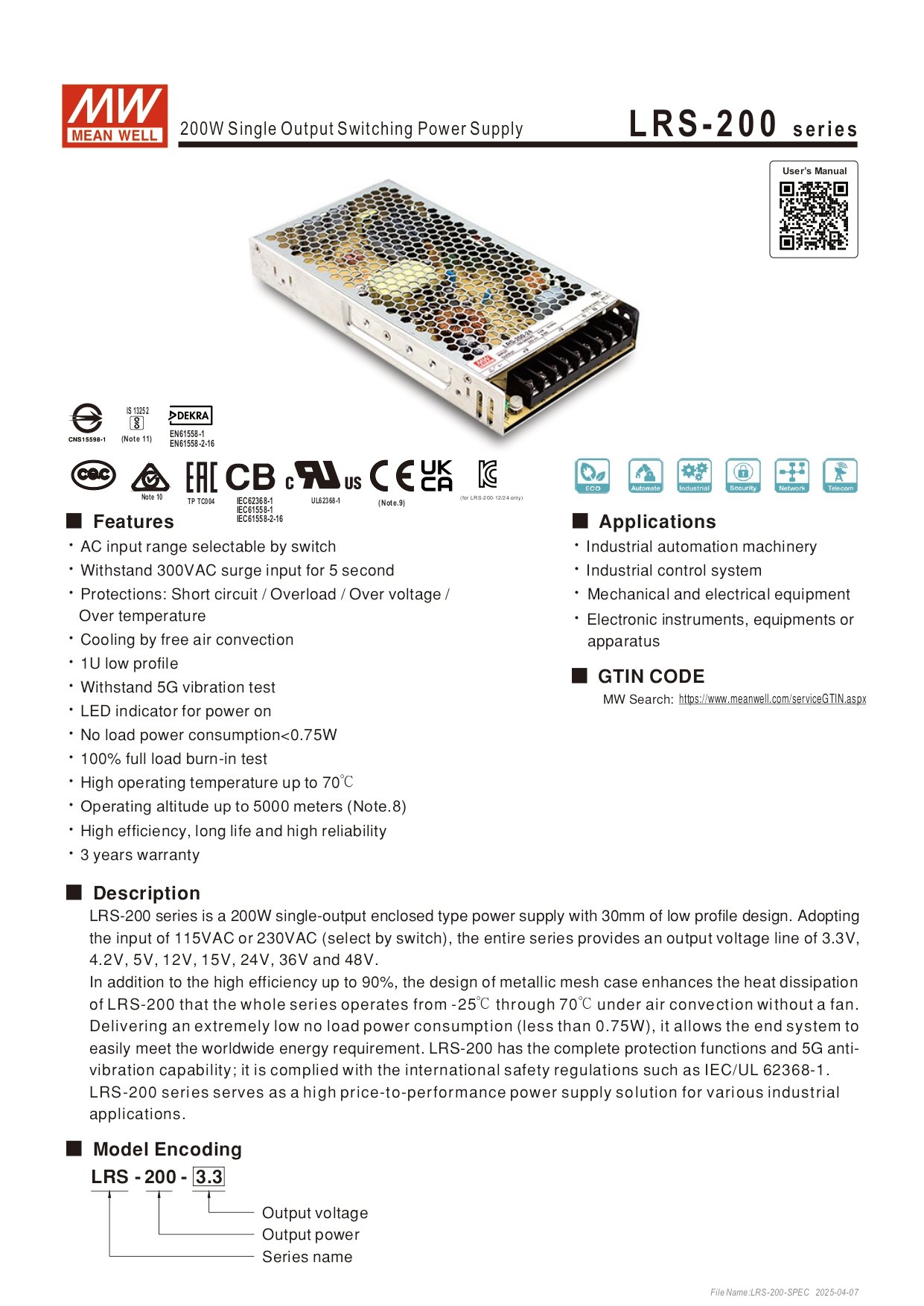

Meanwell Power Supply LRS-200-12

₹2,000.00

Brand:

Output Voltage: 12 V DC
Output Current: 17 A
Output Power: 204 W
Input Voltage: 90–132 VAC / 180–264 VAC (switchable) or 240–370 VDC
Efficiency: ≈87.5%
Ripple & Noise: ≈150 mV p-p
Voltage Regulation: ±1.5%
Line Regulation: ±0.5%
Load Regulation: ±1.0%
Protections: Short circuit, overload, overvoltage, overtemperature (auto recovery)
Dimensions: 215 × 115 × 30 mm (L×W×H)
Operating Temperature: –25 °C to +70 °C
Features: Fanless convection cooling, metallic mesh case, low-profile 1U design
Compliance: IEC / UL / EN safety & EMC standards
