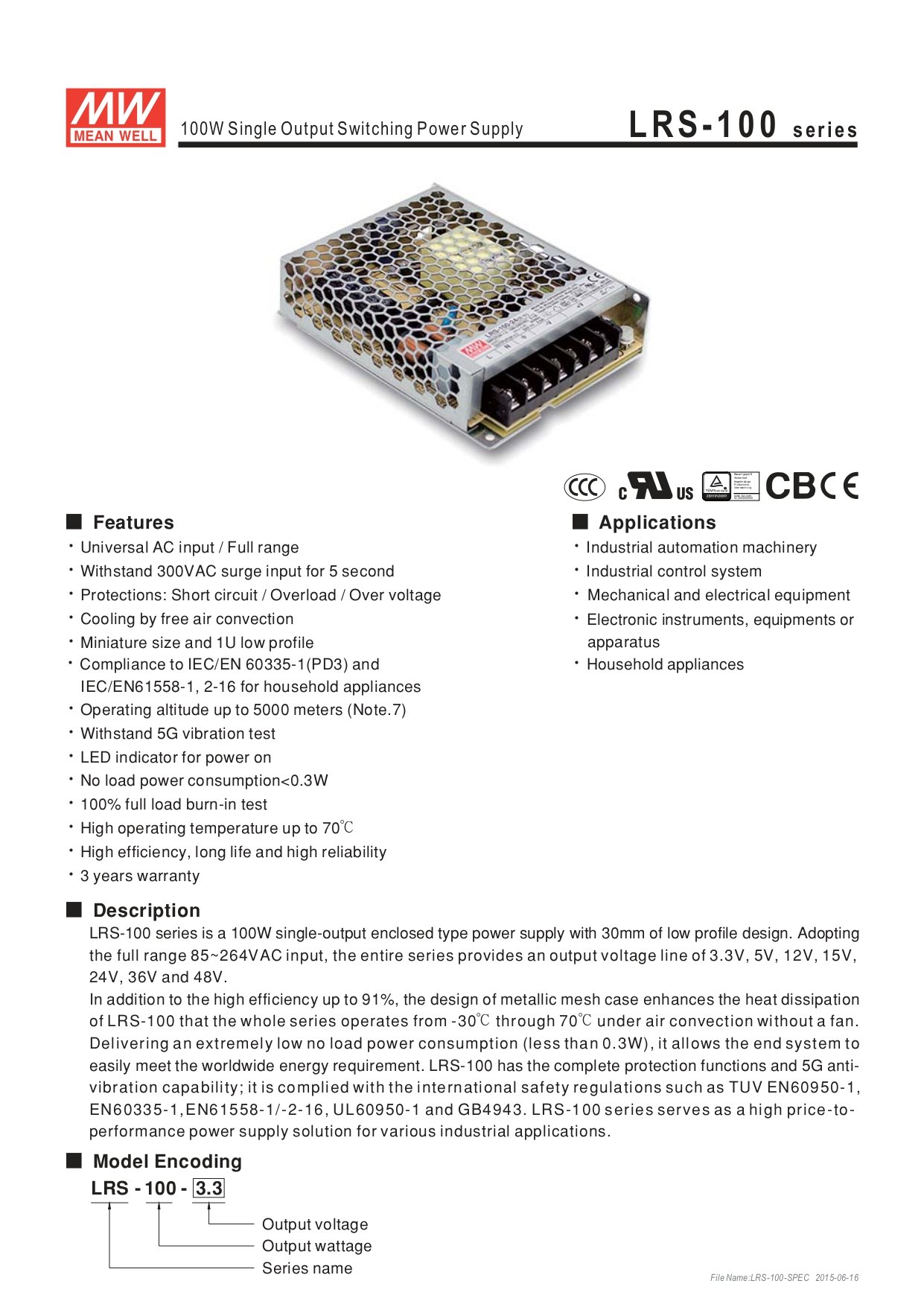

Meanwell Power Supply LRS-100-5

Type: Enclosed AC-DC power supply (open frame with metal cover)

Power Rating: 100 W

Input Voltage: 85–264 VAC or 120–373 VDC (universal input)

Output Voltage: 5 V DC (adjustable 4.5–5.5 V)

Output Current: Up to 18 A

Efficiency: Up to 86%

Protections: Short-circuit, overload, over-voltage

Cooling: Convection (fanless)

Operating Temp: −30 °C to +70 °C (derating beyond)

Isolation Voltage: 3 kVAC (input to output)

Dimensions: 129 × 97 × 30 mm (compact low profile)

Standby Power Consumption: <0.3 W

Certifications: UL62368-1, TUV BS EN/EN62368-1, EAC, CE
