HG-C1100-P

₹32,096.00

Brand: Panasonic

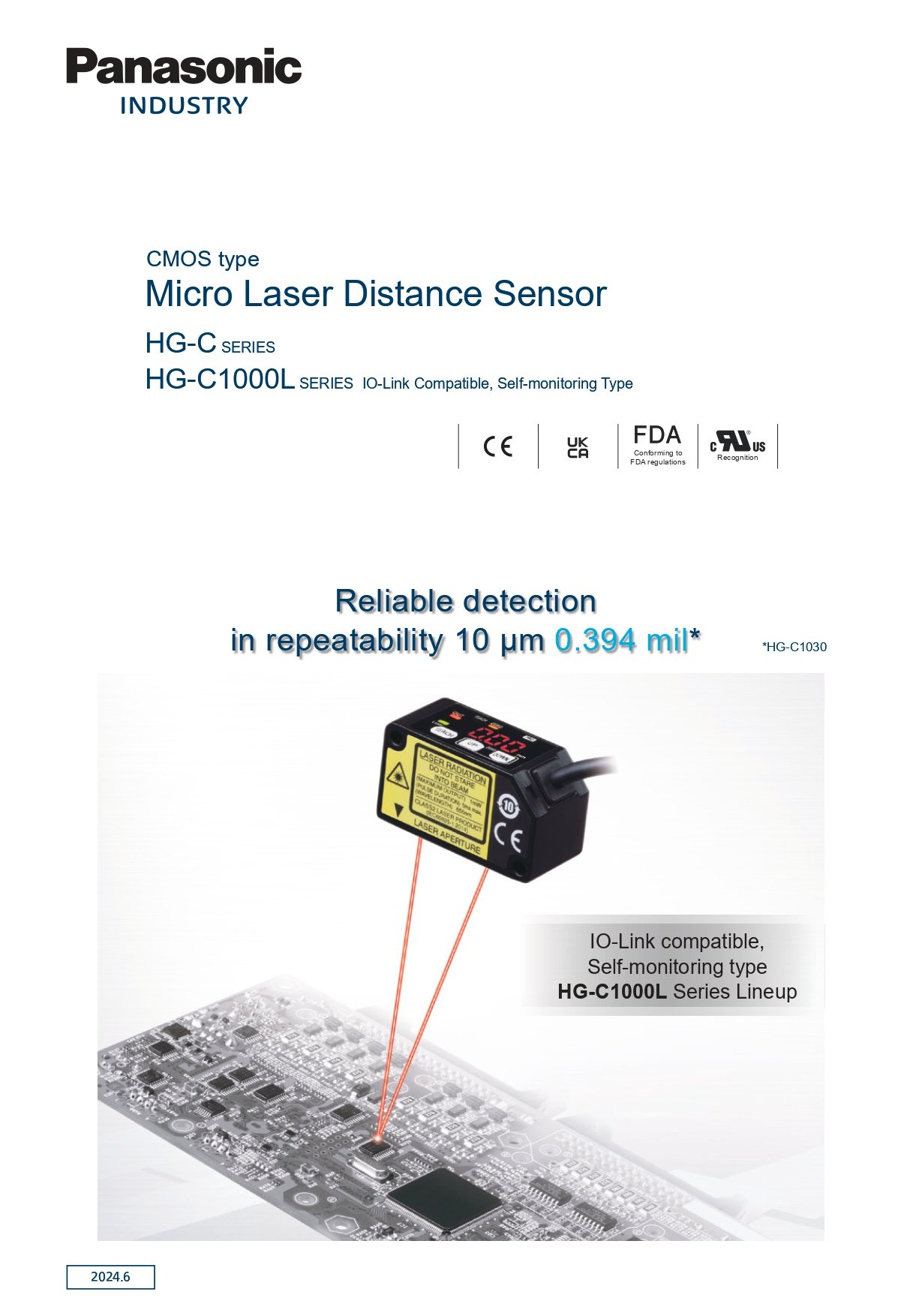

Type: CMOS laser displacement sensor
Sensing Range: 30 ±10 mm (20–40 mm)
Linearity: ±0.1 % F.S. (±0.03 mm)
Repeatability: 10 µm
Light Source: Red semiconductor laser, Class 2
Output: PNP open-collector transistor (control output) + Analog output (1–5 V)
Response Time: 1.5 ms / 5 ms / 10 ms (selectable)
Display: OLED digital display (green)
Power Supply: 12–24 V DC ±10%
Connection: 2 m cable (standard)
Operating Temp: –10°C to +45°C
Protection: IP67
Use: High-precision distance/position measurement in assembly, inspection & robotics
