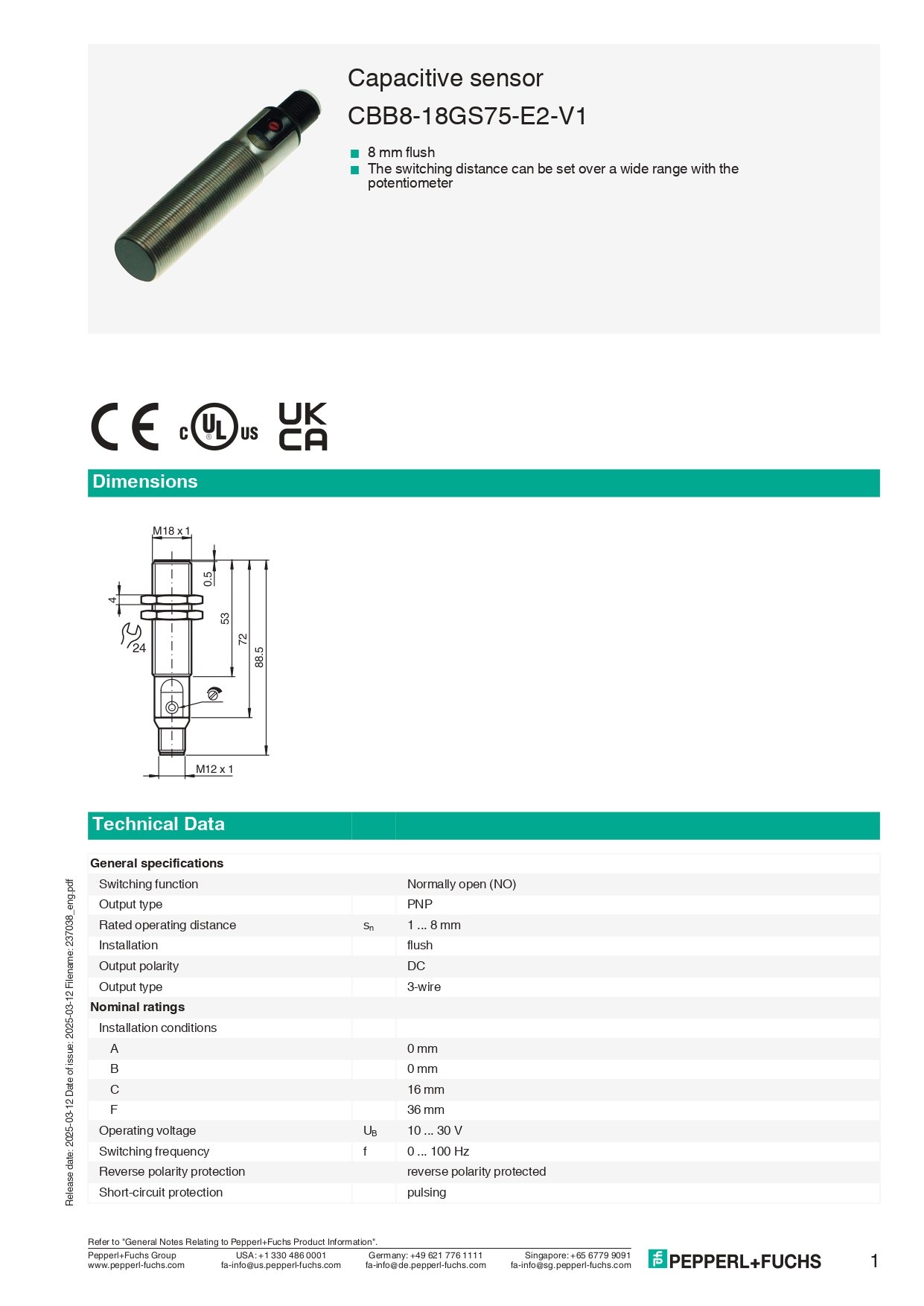

CBB8-18GS75-E2-V1

₹4,200.00

Brand:

Series: CBB
Type: Capacitive proximity sensor
Sensing distance: 8 mm
Output type: 3-wire, DC, PNP NO
Operating voltage: 10–30 V DC
Switching frequency: ~50 Hz
Connection type: V1 (M12 connector, 4-pin)
Housing: Cylindrical M18 × 75 mm, threaded
Housing material: Nickel-plated brass
Installation: Flush mounting
Protection class: IP67
Ambient temperature: –25 °C … +70 °C
Special feature: Suitable for detecting conductive and non-conductive materials (liquids, plastics, etc.)
