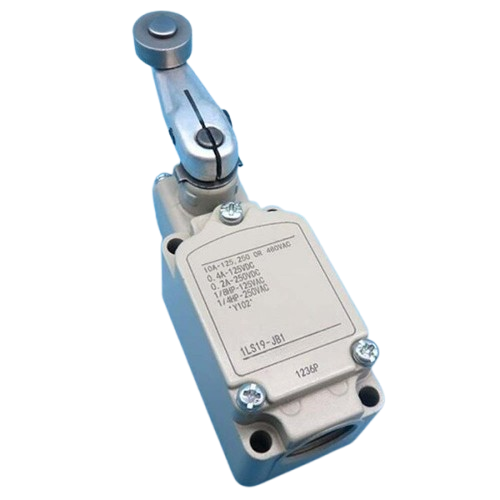

1LS19-JB1

Rugged die-cast aluminium body

Protection: IP67 (oil, dust, water)

Rated voltage: 120 / 240 VAC, 30 V DC

Thermal current: 10 A (silver contacts), 1 A (gold-plated)

Impulse dielectric strength: Withstands 5× operating force for 1 minute

Terminal strength: Withstands 1.5 N·m torque for 1 minute

Certifications: UL / CSA / CE / CCC

Operating speed: Min ~0.4 mm/s, Max ~0.5 m/s (1LS series typical)

Mechanical life: ≥ 1,000,000 operations
