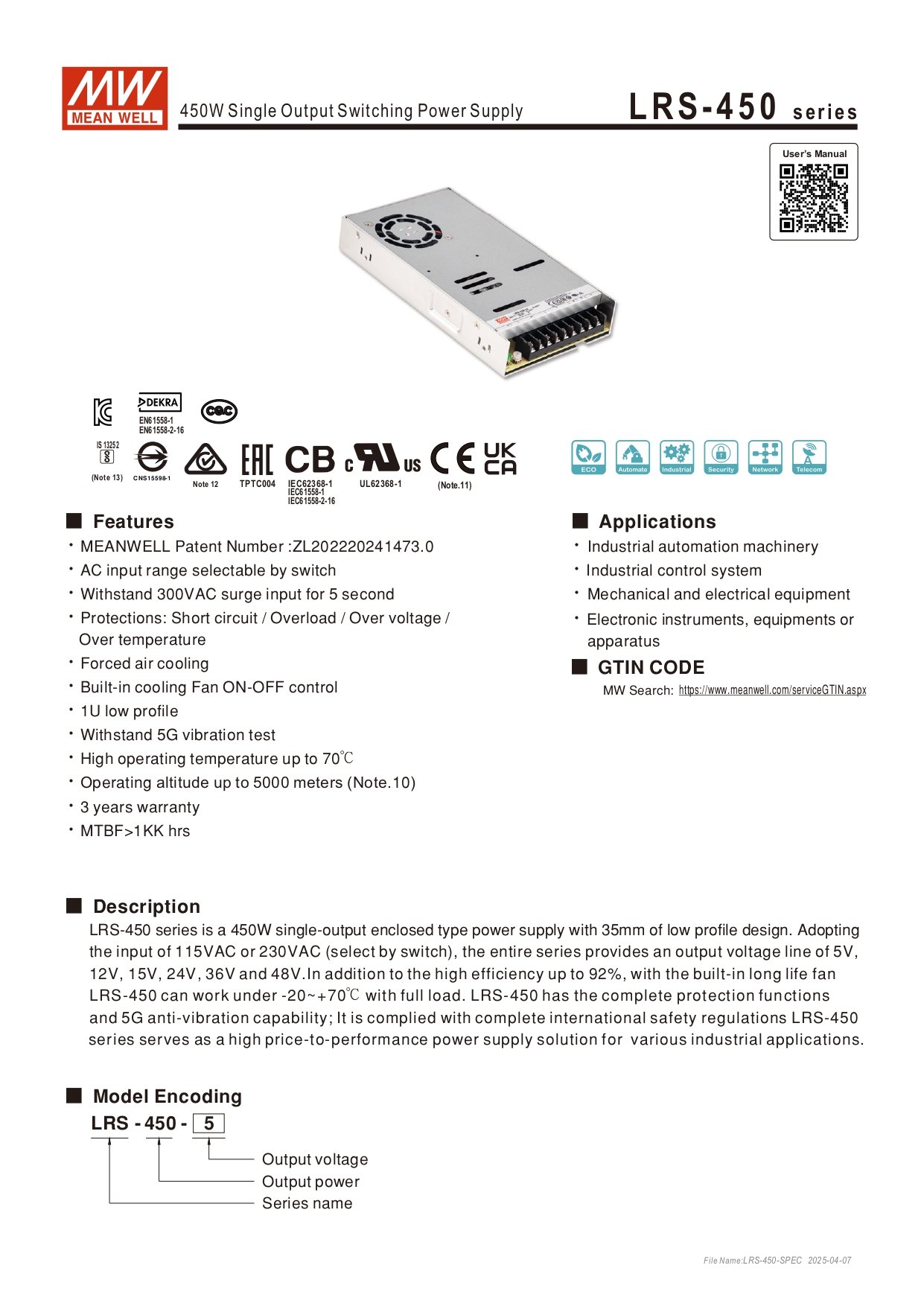

Name: Meanwell Power Supply LRS-450-24
SKU: LRS-450-24
Availability: InStock

Meanwell Power Supply LRS-450-24

₹4,358.00

Brand:

Output: 24 V DC at up to 18.8 A, delivering approximately 451 W output power.
Input: Universal AC input selectable via switch (90–132 VAC or 180–264 VAC), and supports 255–370 V DC. Survives 300 VAC surge for up to 5 s.
Efficiency: Around 91–92 %, depending on load.
Cooling: Built-in fan with ON-OFF control. Quiet under low loads but will run more under full load.
Protections: Includes short-circuit, overload, over-voltage, and over-temperature protection.
Mechanical: Enclosed chassis, just 1U low profile (225 × 124 × 35 mm), weight around 0.85–1.87 kg depending on packaging.
Environment: Operates from –20 °C to +70 °C, can handle altitudes up to 5000 m, passes 5G vibration testing.
Certifications & Warranty: Complies with IEC/UL 62368‑1, CE, cURus, UKCA, EAC, BSMI, BIS etc., with 3 years warranty and MTBF > 1 million hours.
